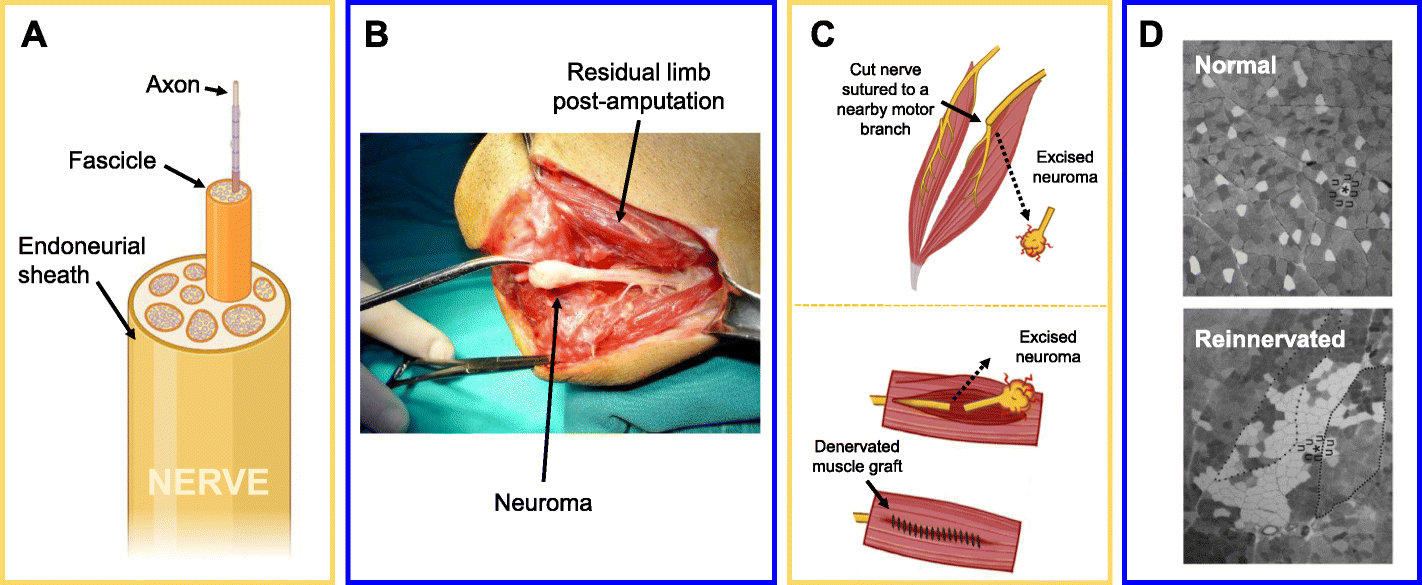

Fig. 2

Regenerating Nervous System. a The cross-section of a nerve contains bundles of axonal projections traveling away from their cell bodies. The entire nerve is wrapped in an endothelial tissue referred to as the endoneurial sheath. Within the endoneurium, axons are grouped into fascicles that later branch out of the nerve. b A neuroma is a mix of fibroblasts, collagen, scar tissue, and neuron axons that have escaped from a cut nerve. This tissue is electroactive and known to cause severe pain in amputees (ehirlio lu et al., 2007). c To prevent neuromas from forming, a cut nerve ending can be sutured to the distal motor branch of a nearby nerve (a.k.a. nerve-nerve coaptation or TMR, shown on top). Another option for preventing pain is to wrap a denervated muscle graft around the cut nerve ending (shown on bottom). Both devascularized grafts (RPNIs) and vascularized grafts (VDMTs) have been demonstrated to prevent neuroma formation in humans. d Reinnervated muscle shows some very obvious and reproducible differences when compared to intact muscle. The most visually obvious change is the loss of a mosaic distribution among fibers from one MU. Instead of a mosaic, reinnervated muscle develops MUs in which all of the fibers in that unit are spatially clumped up together. Different shades of grey in this image of a muscle cross-section represent different fiber types, and darker fibers have higher oxidative capacity (less fatigability) (Brooke et al., 1971)
